The big hole

Or: Why buildings with voids in the middle are bad design choices.

Apple’s plan for a new campus in Cupertino has received a lot of attention in the media and architecture world, most of it awestruck and full of praise, reproducing the same glittering images of a new iconic building. The project is not only seen as a major contribution to a sustainable and green workplace, but also has the objectives of “promoting shared creativity and collaboration” and “creating a distinctive and inspiring 21st Century workplace”, as quoted by Dezeen.

Steve Jobs himself, in a presentation to the Cupertino City Council Meeting, called it a “pretty amazing building, like a spaceship landed”, “pretty cool” and “human scale” due to its low rise character of four storeys only.

But how human scale is a building with a diameter of 500 metres, larger than the pentagon (that houses more than twice the numbers of staff)? How human scale is it, when the way to the provided staff restaurant could be as far as 800 metres, if your desk is at the wrong end?

Certainly, uniting all staff under one roof is probably going to ease collaboration and may allow a sense of community to flourish. Maybe staff will even appreciate occupying an iconic building.

Still, buildings with big voids in the middle are wasting a great opportunity, i.e. the opportunity of creating a centre within the building, a hub for staff to get together. What people at Apple are soon going to realise once the project is built, everyone has moved in and developed their everyday routines, is that distance will rule in the building.

So why would distance matter that much? Research by Tom Allen from MIT in the 1960’s and 70’s has shown that the likelihood of frequent communication drops significantly when colleagues are seated more than 20 metres apart. This relationship between decreasing interaction with increasing distance has been confirmed in more recent studies (see my PhD on the Space-Organisation-Relationship). This is still valid in a time of electronically mediated communication, because we tend to email the same people frequently that we interact with intensively face-to-face.

Apart from the sheer scale of the building, two main design decisions create higher levels of distance than necessary. Firstly, the circular shape with a void in the centre, and secondly the design of a double circulation route on the outsides of the ring.

A long stretched design maximises distances between people, while a more compact built form allows for proximity and integration (as for instance, argued by Ermal Shpuza in his Phd). What is more, a void in the middle is the worst design choice to be made, since it means there is nothing, where there should be the heart of the building. Again, this creates depth instead of closeness, as Bill Hillier has shown in his book ‘Space is the Machine‘ (see page 235ff for the discussion of inaccessible blocks or voids in the centre of a configuration).

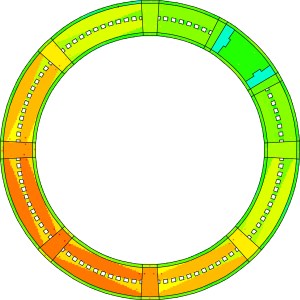

A quick visibility analysis of Apple’s new building using Space Syntax methodology confirms that this is going to be a building without a strong centre. As in a heat diagram, the analysis shows areas of integration in red and areas of segregation in blue. It is obvious from the image that there is no strong attractor and no centre in the building. The staff restaurant in the top right corner is the least integrated space, because the serving areas cut it off from the adjacent spaces. What is more, doubling up the main circulation into an inner ring and outer ring again creates depth and pulls people apart instead of bringing people together.

In summary, I doubt that this building will foster shared creativity and collaboration. Of course this can only be seen once the building is in use. Still, function and the likely impact of configuration on the emergence of social life seems to have been sacrificed for the wish to create an icon. Hopefully, it will at least look good from space.

10 thoughts on “The big hole

  1. Pingback: The Ideal Office: Concentric? | spaceandorganisation

  2. Your argument is completely ignoring the fact that there is in fact something in the center of the building. There will be a native California garden, with MANY formal and informal meeting spaces. Steve Jobs valued the landscape as a place of inspiration and invigoration, and to say that it’s “nothing” perpetuates both the building-landscape divide and the idea that landscape is subjugated by architecture. You should consider the space of the landscape in your analysis as well.

    • I agree with you, JJ. The analysis indeed did not take the outside areas and landscape into account and focused solely on the interior of the proposed workspace. In my analysis and comments I reacted to the architectural plans – I haven’t yet seen any details on the landscaping. Have you?
      Also it only took the basic structure into account. A detailed analysis including all interior design as well as landscape design would be interesting to conduct, and of course it would be fascinating to see how the gardens will be used by employees once the building is in use. After all, what I am interested in is space usage and the relationship between people and workspaces, and as you correctly point out landscape could play an important role here.
      However, my overall criticism remains that the proposed workplace configuration will create distances rather than proximity and as such may impede interaction and collaboration. But of course, future will tell and we will only see this once the building is occupied.

    • I think it depends on the weather. I doubt this design would work in Moscow. But in Calfornia, sure, plus you can walk around the gardens while talking, and get some exercise.

  3. Hey! Nice to see this kind of talk with intresting tools like VGA. I thing you may have a point in that it might not be the best shape for collaboration. However isn’t it assuming that the “best” collaboaraion would be that everyone would be able to communicate with everyone else as easily? As I understand it the building is divided by using entrance, into smaller sectors. Within these sectors isn’t the collaboaration “encouraged”? Between further sectors the communication can be enchanced through other means of technology, face to face communication isn’t always the best option! Most importantly relative sectors can be put close together whereas irelevant one further apart. Another intresting analysis would be a local VGA for each sector which might give us a better image in regards to collaboration within each sector. As for the restaurant I think that this is an actual problem and it can be clearly seen in your VGA.

    • I think you’ve got a point there – the local configuration will definitely be important for collaboration and clearly teamwork and collaboration in small groups can be crucial for a company. But as long as we don’t see detailed workplace layouts, it’s difficult to analyse this level and judge the quality of the design. Time will tell…
      Still what I believe might be missing is cross-fertilisation, random encounters and serendipity, i.e. meeting new people, sharing new ideas and creating new things.
      Face-to-face communication is not always best, but often required to develop trust between people.
      Plus, I’ve found in my research that people tend to communicate electronically with the same people they see face-to-face.

  4. Pingback: Seeing is not Interacting – Thoughts on the new Learning Hub by Heatherwick Studio | spaceandorganisation

  5. Pingback: Collaboration: Too much of a good thing? | Em News

  6. Pingback: Collaboration: Too much of a good thing? | The Logical Place

  7. Pingback: Collaboration: Too Much of a Good Thing? | Golden Gate Daily
